MH type electric hoist gantry crane

MH type electric hoist gantry crane is used with CD, MD, HC and other types of electric hoist. It is a small and medium-sized crane with rail operation.

Shandong Tianli Heavy Industry Group Co., Ltd.

Phone: +86 18854868555 +86 13561784486

Phone: +86 13953805777

Telphone: +86-538-7442126

Address：Yangliu Industrial，Xintai city，Shandong Province，China

TEL：+86 18854868555 Advisory

Information details

MH type electric hoist gantry crane

MH type electric hoist gantry crane is used with CD, MD, HC and other types of electric hoist. It is a small and medium-sized crane with rail operation. It is suitable for lifting capacity of 3-32 tons and suitable for spans of 12-30 meters. , working environment -20 ° C - + 40 ° C.

This product is a general-purpose crane. It is mostly used for the installation or lifting of goods in open spaces and warehouses. This product has two forms of ground control and indoor operation. Users can choose freely according to actual needs.

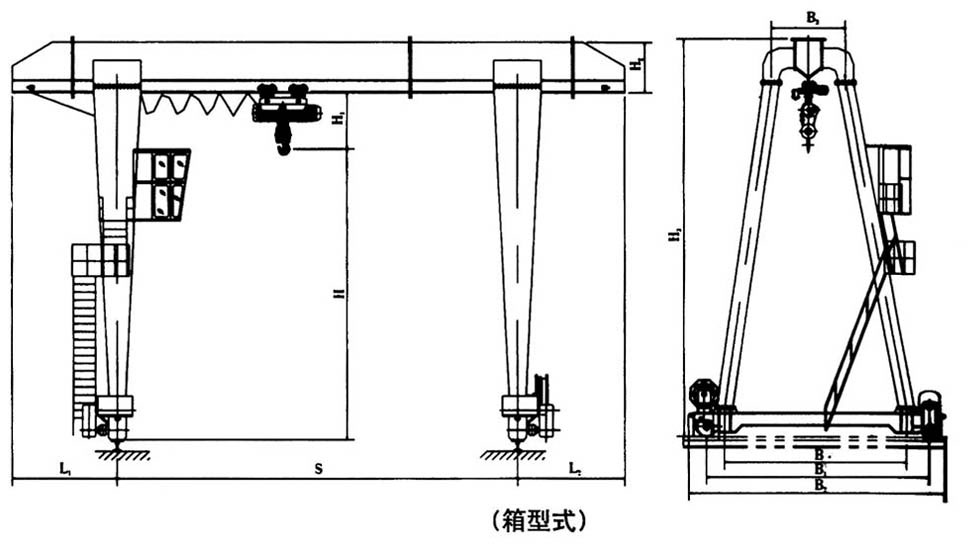

MH type electric hoist gantry crane

Technical Data Sheet

Lifting capacity			t	5
span			m	12	16	20	twenty four	30
Lifting height (m)			m	6;9				9
Operating agencies	Running speed	ground	m/min	20
		driver's room		20 30 45
	electric motor	ground		YZR132M2-6/3.7x2		YZR160M1-6/5.5x2
		driver's room
	reducer		Mm	ZSC400			ZSC600
	Wheel diameter			Φ400		Φ500
Electric hoist	model		m/min	CD₁ MD₁
	Lifting speed		m/min	8 0.8/8
	Running speed			20
	electric motor	Rise		ZD141-4/7.5 ZDS₁0.8/7.5
		run		ZDY12-4/0.8
Working system				A5
Recommended rail				P24 P38
power supply				Three-phase communication 380V 50HZ
Crane quality	ground		kg	8234	11271	13170	17830	22106
	driver's room		Kg	8584	11620	13520	18181	25500
Wheel pressure ≤			kN	54/59	62/67	70/75	78/83	91/96
Basic size	L₁		mm	3000	4000	5000	6000	7500
	L₂		mm
	H₁		mm	1160
	H₂		mm	800	900	1000	1150	1300
	H₃		mm	760/10960	8060/11060	8160/11160	8310/11310	11460
	B		mm	4500/5500		5500/6500
	B₁		mm	5500/6500		6500/7500
	B₂		mm	6000/7000		7100/8100
	B₃		mm	1500

The weight provided in this sample is the design value, the manufacturing value is ±15%.

Lifting capacity			t	10
span			m	12	16	20	24	30
Lifting height(m)			m	6;9				9
Operating agencies	Running speed	Ground	m/min	20
		Driver's room		30 40
	Electric motor	Ground		YZR132M2-6/3.7x2		YZR160M1-6/6.3x2
		Driver's room
	Reducer		mm	ZSC400			ZSC600
	Wheel diameter			φ400		φ500
Electric hoist	Model		m/min	CD₁ MD₁
	Lifting speed		m/min	7 0.7/7
	Running speed			20
	Electric motor	Rise		ZD151-4/13 ZDS₁1.5/13
		Run		ZDY21-4/0.8x2
Working system				A5
Recommended rail				P38 P43
Power supply				Three-phase communication 380V 50HZ
Crane quality	Ground		kg	12238	15059	17423	21120	32700
	Driver's room		kg	12750	15509	17873	21570	33200
Wheel pressure ≤			kN	98/102	105/110	113/118	121/126	142/149
Basic size	L₁		mm	3000	4000	5000	6000	7500
	L₂		mm
	H₁		mm	1350
	H₂		mm	1000	1100	1200	1300	1600
	H₃		mm	8350/1135	8450/1450	8550/11550	8650/11650	12250
	B		mm	4500/5500		5500/6500
	B₁		mm	5500/6500		6500/7500
	B₂		mm	6000/7100		7100/8100
	B₃		mm	1600

The weight provided in this sample is the design value, the manufacturing value is ±15%.

Lifting capacity			t	20
Span			m	12	16	20	24	30
Lifting height(m)			m	6;9				9
Operating agencies	Running speed	Ground	m/min	20
		Driver's room		30
	Electric motor	Ground		YZR160M1-6/6.3x2		YZR160M2-6/8.5x2
		Driver's room
	Reducer		mm	ZSC400			ZSC600
	Wheel diameter			φ600
Electric hoist	Model		m/min	HC
	Lifting speed		m/min	3.5
	Running speed			20
	Electric motor	Rise		ZD152-4/18.5
		run		ZDY21-4/0.8x4
Working system				A5
Recommended rail				P43 P50
Power supply				Three-phase communication 380V 50HZ
Crane quality	Ground		kg	16850	21630	25000	31000	38000
	Driver's room		kg	17520	22400	25870	32150	39170
轮压≤			kN	99/199	123/223	141/240	179/279	212/317
Basic size	L₁		mm	3000	4000	5000	6000	7000
	L₂		mm
	H₁		mm	6000				9000
	H₂		mm	2725
	H₃		mm	1400	1600	1800	2000	2200
	B		mm	5000				5500
	B₁		mm	6000				6500
	B₂		mm	7600				8500
	B₃		mm	1600				1700

The weight provided in this sample is the design value, the manufacturing value is ±15%.

Lifting capacity			t	32
Span			m	12	16	20	24	30
Lifting height(m)			m	6;9				9
Operating agencies	Running speed	Ground	m/min	20
		Driver's room		30
	Electric motor	Ground		YZR160M2-6/8.5x2		YZR160L-6/11x2
		Driver's room
	Reducer		mm	ZSC650			ZSC600
	Wheel diameter			φ700
Electric hoist	Model		m/min	HC
	Lifting speed		m/min	2.5
	Electric motor	Rise		ZD152-4/18.5
		Run		ZDY21-4/0.8x4
Recommended rail				P43 P50
Power supply				Three-phase communication 380V 50HZ
Crane quality	Ground		kg	19120	23110	33260	38010	42020
	Driver's room		kg	19650	23660	33840	38580	42660
Wheel pressure≤			kN	225/232	267/276	365/374	416/427	474/482
Basic size	L₁		mm	3000	4000	5000	6000	7000
	L₂		mm
	H₁		mm	6000				9000
	H₂		mm	3085
	H₃		mm	1700	1900	2000	2000	2000
	B		mm
	B₁		mm	5000
	B₂		mm	6000
	B₃		mm	7600

The weight provided in this sample is the design value, the manufacturing value is ±15%.
